| Place of Origin: | China |
|---|---|
| Brand Name: | RIFI |
| Certification: | UL |
| Minimum Order Quantity: | 1000PCS |
| Price: | $0.8-$20/PCS |
| Packaging Details: | Carton |
| Delivery Time: | 30days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 100000pcs/Month |
| Material: | Zinc Die Cast | Application: | Electrical Wiring |
|---|---|---|---|
| Transport Package: | Caton | Standard: | UL797 |
| Usage: | Indoor, Outdoor | Production Capacity: | 100000pieces/Month |
| Highlight: | 4'' Electrical GI EMT Conduits,Electrical GI EMT Conduits UL Listed |
||
Product description

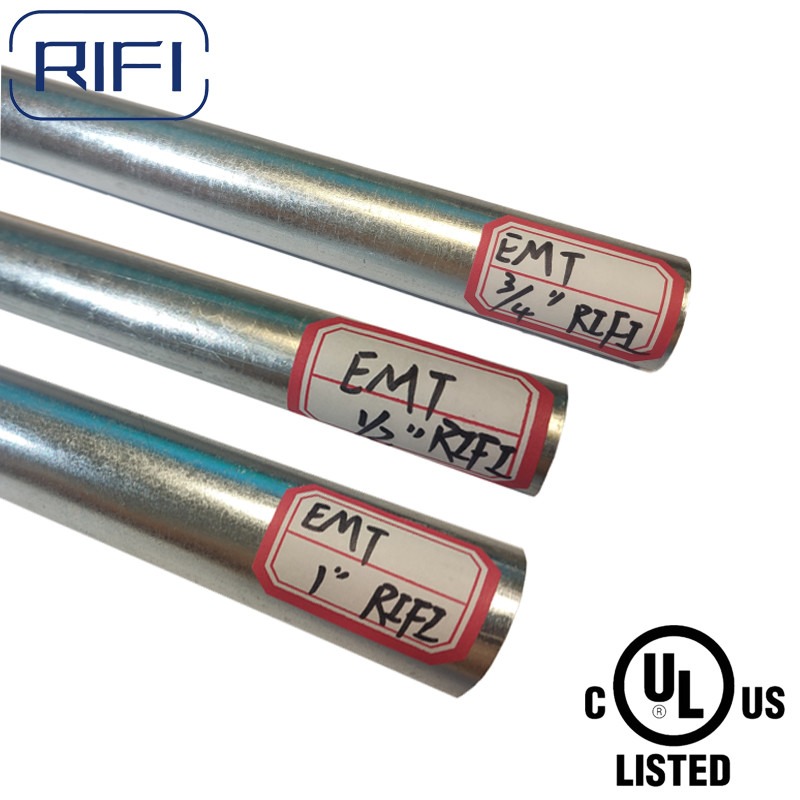

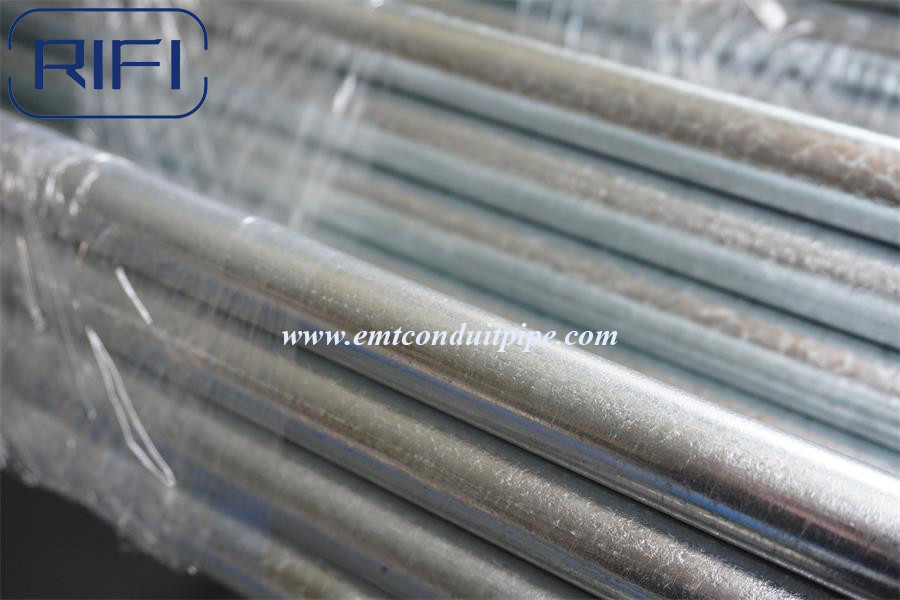

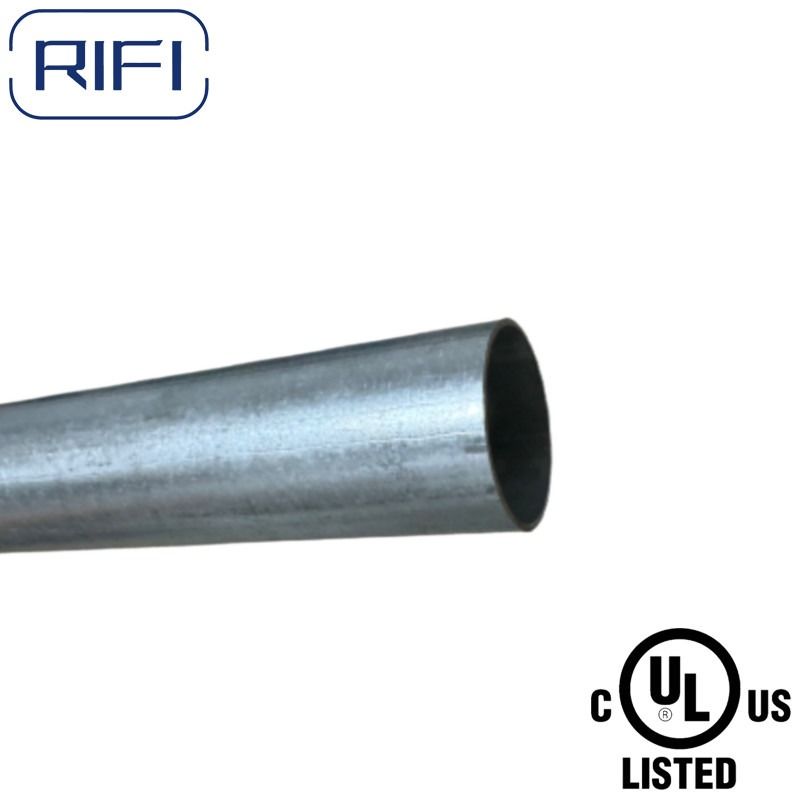

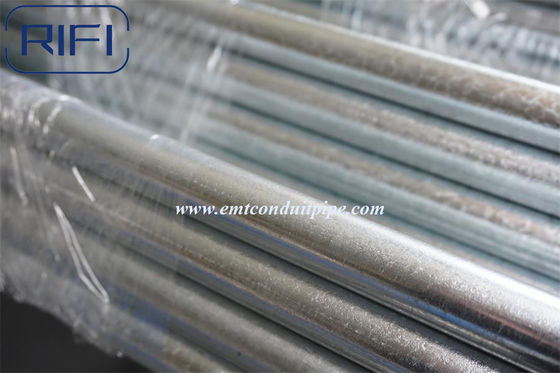

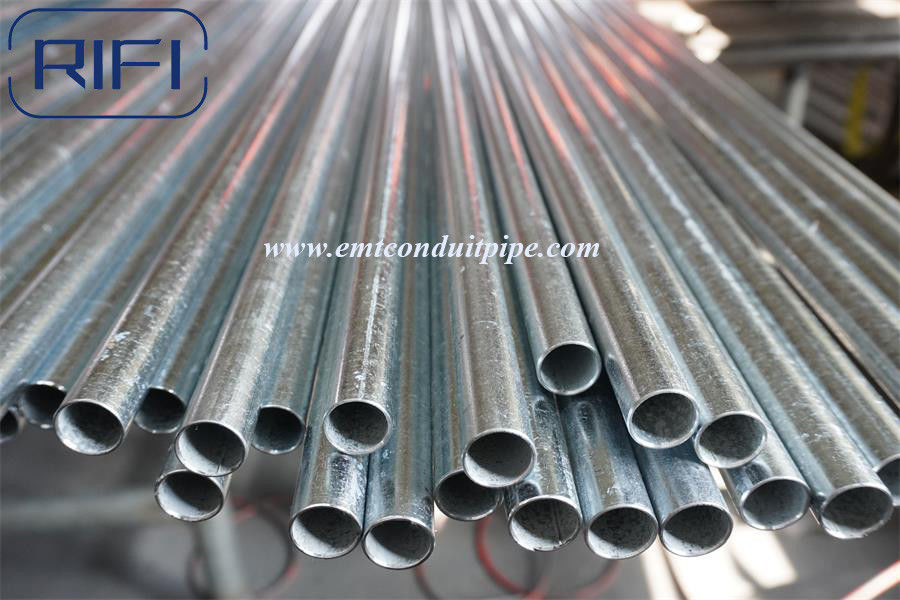

UL Standard 3/4 Inch 1 Inch Electrical Conduit Metal Wire Tube EMT Conduit Pipe
1. Material: EMT conduit is typically made from steel, which can be galvanized for corrosion resistance. Some versions of EMT conduit are also available in aluminum.
2. Size: EMT conduit comes in various sizes, typically ranging from 1/2 inch to 4 inches in diameter. The choice of size depends on the specific electrical wiring requirements of the installation.
3. Wall Thickness: EMT conduit has a thinner wall compared to other types of conduit like rigid metal conduit (RMC) or intermediate metal conduit (IMC). The thinner wall makes it more lightweight and easier to bend.
4. Bendability: EMT conduit is known for its flexibility and ease of bending. It can be bent by hand or with specialized tools to navigate corners and obstacles during installation.
5. Use: EMT conduit is suitable for both exposed and concealed electrical installations. It is commonly used in residential, commercial, and industrial settings to protect electrical wiring from physical damage, moisture, and other environmental factors.
6. Fittings: EMT conduit is typically connected using fittings designed specifically for EMT, such as EMT connectors and couplings. These fittings ensure a secure and code-compliant installation.
7. Grounding: EMT conduit can serve as an effective grounding path for electrical systems when properly installed and connected. It is essential to follow local electrical codes and regulations for grounding requirements.
8. Code Compliance: EMT conduit must meet specific electrical codes and standards, which may vary depending on your location. In the United States, for example, it should comply with the National Electrical Code (NEC).
9. Corrosion Resistance: Galvanized EMT conduit offers good corrosion resistance, making it suitable for both indoor and outdoor applications. However, it may not be as corrosion-resistant as stainless steel conduit.
10. Joints and Connectors: EMT conduit joints and connectors are typically threaded, allowing sections of conduit to be securely joined together.
It's important to note that EMT conduit is not designed for use in hazardous locations or where extra protection against physical damage is required. In such cases, more robust conduit types like Rigid Metal Conduit (RMC) or Intermediate Metal Conduit (IMC) may be used.
Specification
UL standard 3/4 inch 1 inch electrical conduit metal wire tube Pre-galvanized /Hot-Dipped Galvanized
| Trade Size | Outside Diameter | Wall Thickness | Length | Packing | |||
| inch | mm | inch | mm | feet | mm | Bundle | |
| 1/2" | 0.706 | 17.93 | 0.042 | 1.07 | 10 | 3050 | 20pcs |
| 3/4" | 0.922 | 23.42 | 0.049 | 1.25 | 10 | 3050 | 15pcs |
| 1" | 1.163 | 29.54 | 0.057 | 1.45 | 10 | 3050 | 10pcs |
| 1-1/4" | 1.510 | 38.35 | 0.065 | 1.65 | 10 | 3050 | 5pcs |
| 1-1/2" | 1.740 | 44.20 | 0.065 | 1.65 | 10 | 3050 | 5pcs |
| 2" | 2.197 | 55.80 | 0.065 | 1.65 | 10 | 3050 | 5pcs |
| 2-1/2" | 2.875 | 73.03 | 0.072 | 1.83 | 10 | 3050 | 1pcs |
| 3" | 3.500 | 88.90 | 0.072 | 1.83 | 10 | 3050 | 1pcs |
| 3-1/2" | 4.000 | 101.60 | 0.083 | 2.11 | 10 | 3050 | 1pcs |
| 4" | 4.500 | 114.30 | 0.083 | 2.11 | 10 | 3050 | 1pcs |
| Tolerances:Length±0.25"(6.35mm),Outside Diameter1/2"through2"±0.005"(0.13mm),2-1/2"through4"±0.016"(0.41mm) | |||||||
| Note:if you need different thickness or length,please contact. | |||||||
FAQ
Q1: Are you a trading company or manufacturing company?
A: Both we are, we have 2 production bases and about 10 sourcing factory to meet customer whole line items demand .
Q2:When can I get the quotation?
A1:For regular items within 24 hours; For sprcial items or customize items need a little more time .
Q3: How can I request product samples?
A: The samples are free but courier charge will be collected. Please send us samples list and courier account number.
Q4: How can I request a product catalog?
A: Pls send us your email and we will send you our e catalog ( pdf file ).
The PDF catalog we can send to you by email or WeTransfer.
Q5: What is your payment terms?
A:Normally 30% T/T deposit,balance against B/L copy;
the other is irrevocable L/C 100% at sight.
Q6: How about the delivery time?
A: Accord to your order list and quantity,mostly delivery in 30days.
Q7: How do we control the products' quality?
A: 1. high quality mold
2. raw materials control
3. production process quality control
4. final inspection
5. water testing (no leaking)
