| Place of Origin: | China |
|---|---|
| Brand Name: | RIFI |
| Certification: | UL |
| Model Number: | LFCC038-400 |
| Minimum Order Quantity: | 1000pcs |
| Price: | $0.15-1/m |
| Packaging Details: | carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000pcs |
| Features: | Waterproof, UV Resistant, Fire Retardant | Connector: | Flexible Connector |
|---|---|---|---|
| Usage: | Indoor/Outdoor | Size: | 3/8 Inch-4inch |
| Place Of Origin: | HuNan , China | Feature: | Flexible Metal Pipe |
| Highlight: | Black pvc-coated Metal Flexible Conduit,Metal Flexible Conduit,3/8”-4”Electrical Fitting Flexible Conduit |
||

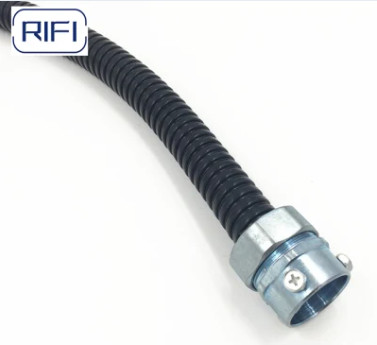

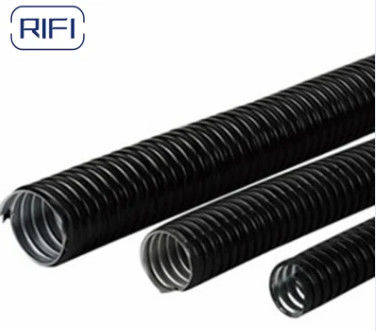

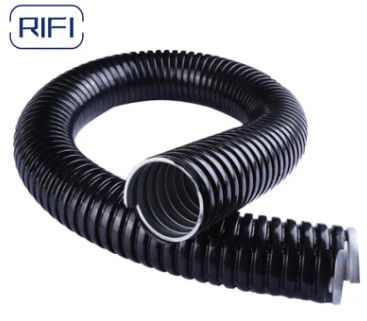

Product Description
PVC-coated steel sleeving made of a galvanized steel strip after special insulation treated and coated with the refined PVC covering.
It is water-proof, corrosion resistant, UV resistant, flame retardant and has good bending performance, the smooth inner structure keeps the wire and cable through easiy.
This Conduit is ideal for static and dynamic appicains reguing high mechanical protection and high flexibility.
Application
It is widely used in power plants, power transmission systems,communication Systems,transportation system for protecting the electrical wires.
Parameters:
| CAT# | Trade Size | Inside(mm) | Outside(mm) | Bending Radius(mm) |
| PFC038 |
3/8" |
12.30-12.8 | 17.00-17.50 | 35 |
| PFC050 | 1/2" | 15.80-16.30 | 20.20-20.70 | 65 |
| PFC075 | 3/4" | 20.70-21.20 | 25.50-26.10 | 75 |
| PFC100 | 1" | 26.00-26.60 | 31.60-32.20 | 100 |
| PFC125 | 1-1/4" | 34.70-35.40 | 40.80-41.50 | 125 |
| PFC150 | 1-1/2" | 40.00-40.60 | 46.60-47.20 | 150 |
| PFC200 | 2" | 51.30-51.90 | 58.10-58.70 | 175 |
| PFC250 | 2-1/2" | 63.00-63.60 | 71.80-72.40 | 200 |
| PFC300 | 3" | 78.00-78.70 | 87.20-87.90 | 225 |
| PFC400 | 4" | 101.60-102.60 | 111.20-112.30 | 275 |
