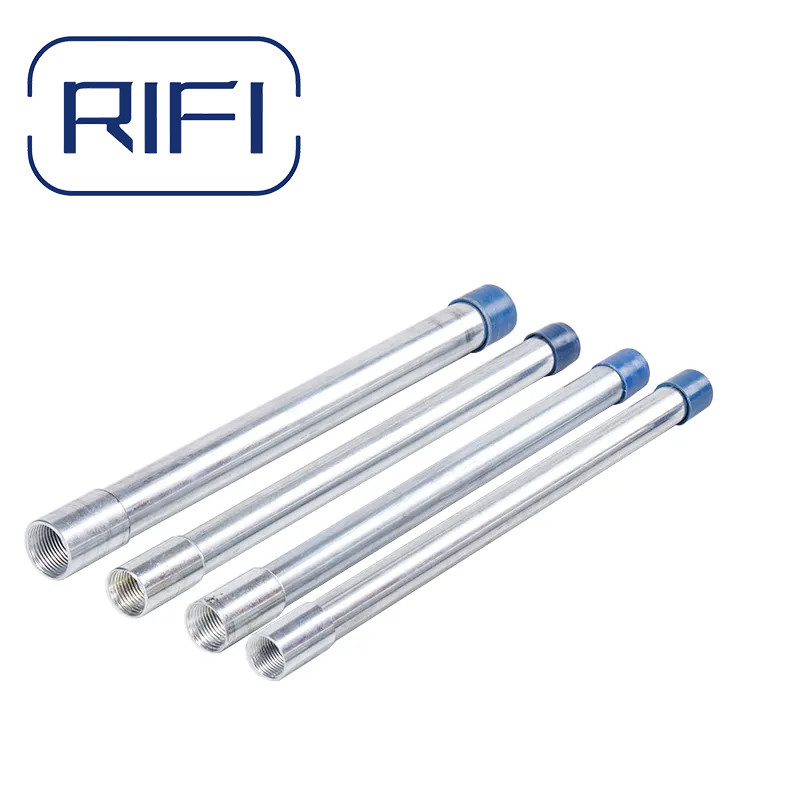

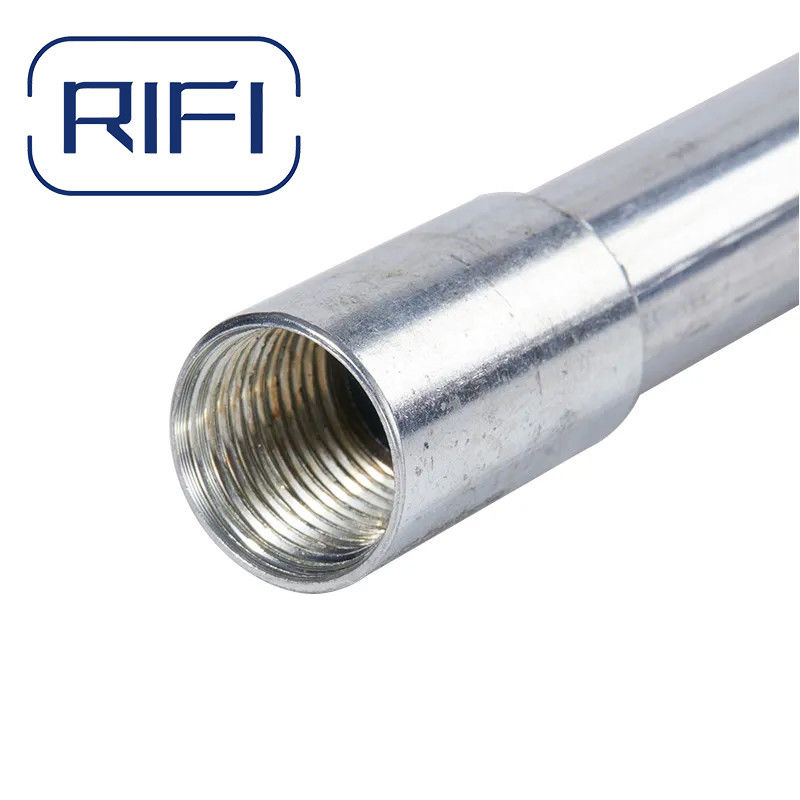

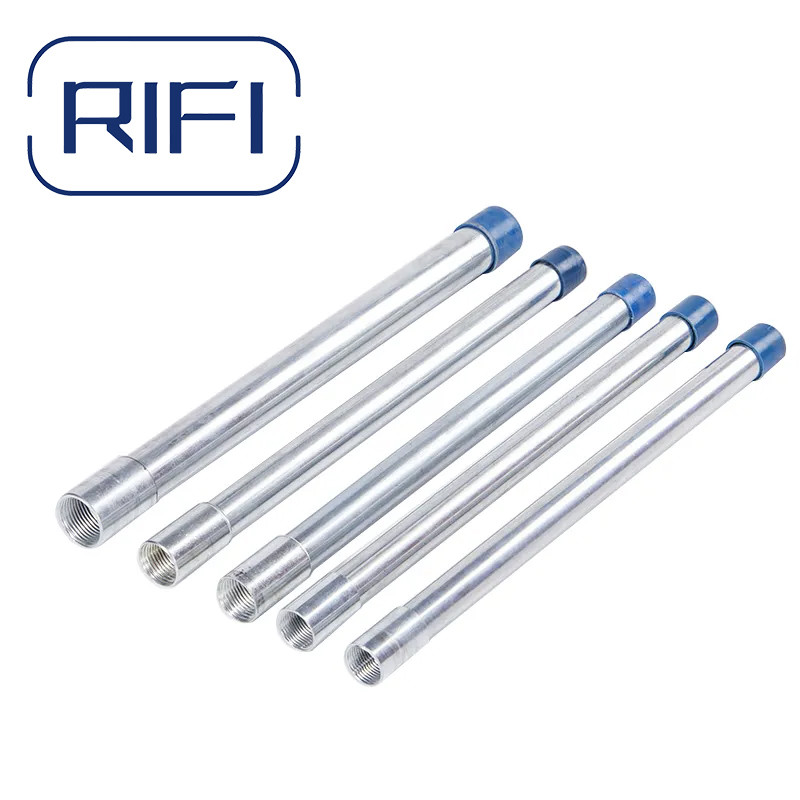

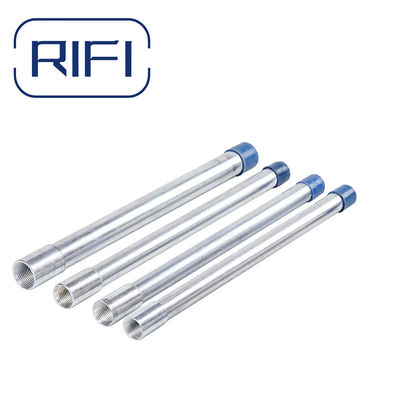

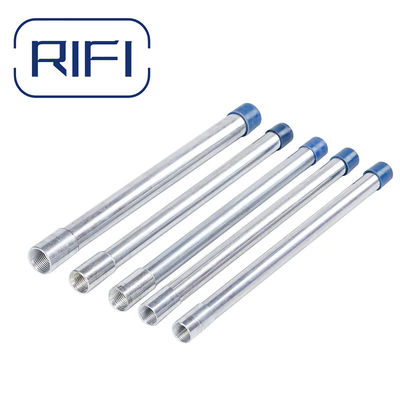

UL Certified Zinc Plated Silver Threaded IMC Conduit Pipe For Electrical Conduit Systems

Product Description:

Product Overview:

The Intermediate Metal Conduit (IMC) Pipe is a versatile and robust solution designed to protect and route electrical wiring in both commercial and industrial applications. Engineered to provide superior strength while maintaining a lighter weight compared to other metallic conduits, the IMC conduit pipe offers a cost-effective and efficient option for modern electrical installations.

Key Features:

1.Material and Construction:

Manufactured from high-quality steel.

Galvanized interior and exterior for enhanced corrosion resistance and longevity.

2.Compliance and Standards:

Meets industry standards such as UL 1242 and ANSI C80.6.

Suitable for use in various environments, including wet, dry, and hazardous locations.

3.Durability:

Thicker walls compared to Electrical Metallic Tubing (EMT), providing better protection against mechanical damage.

Lightweight design facilitates easier handling and installation compared to Rigid Metal Conduit (RMC).

4.Sizes and Dimensions:

Available in a range of diameters from ½ inch to 4 inches.

Standard lengths of 10 feet, with custom lengths available upon request.

5.Ease of Installation:

Smooth interior surface allows for easy wire pulling, reducing installation time and labor costs.

Compatible with a wide range of fittings, connectors, and accessories for a seamless installation.

6.Applications:

Ideal for industrial facilities, commercial buildings, and infrastructure projects.

Suitable for both exposed and concealed installations, providing flexibility for various electrical system designs.

Technical Specifications:

• Material: Steel
• Coating: Galvanized (both interior and exterior)
• Standards: UL 1242, ANSI C80.6
• Diameter Range: ½ inch to 4 inches
• Length: Standard 10 feet (custom lengths available)
• Color: Metallic silver

  Size	Outside Diameter		Inside Diameter		Wall Thickness		Length
  Inch	inch	mm	inch	mm	(1)mm	(2)mm	Feet	mm
  1/2"	0.815	20.70	0.660	16.76	1.97	1.79	10	3050
  3/4"	1.029	26.26	0.869	22.07	2.1	1.90	10	3050
  1"	1.290	32.77	1.105	28.07	2.35	2.15	10	3050
  1-1/4"	1.638	41.59	1.448	36.77	2.41	2.16	10	3050
  1-1/2"	1.883	47.82	1.683	42.74	2.54	2.29	10	3050
  2"	2.360	59.93	2.150	54.60	2.67	2.41	10	3050
  2-1/2"	2.857	72.57	2.557	64.95	3.81	-	10	3050
  3"	3.476	88.29	3.176	80.67	3.81	-	10	3050
  3-1/2"	3.971	100.86	3.671	93.24	3.81	-	10	3050
  4"	4.466	113.44	4.166	105.82	3.81	-	10	3050



Advantages:

• Strength and Protection: Combines strength and rigidity with lighter weight, offering a balance of durability and ease of use.
• Corrosion Resistance: Galvanized coating ensures long-term performance in a variety of environmental conditions.
• Cost-Effective: Provides a lower-cost alternative to RMC while maintaining significant protective qualities.

Installation Guidance:

• Ensure all cuts are smooth and free of burrs to protect wiring insulation.
• Use appropriate fittings and tools to secure connections and maintain system integrity.
• Regular inspections are recommended to ensure the conduit remains in good condition.

Conclusion:

The IMC Conduit Pipe is an essential component for any project requiring reliable protection and routing of electrical wiring. Its compliance with industry standards, combined with its durable yet lightweight construction, makes it an excellent choice for professionals in the electrical and construction sectors. Choose IMC conduit pipe for a balance of strength, efficiency, and cost-effectiveness in your next installation.

Packing and Shipping:

Product Name: IMC Conduit Pipe

Product Dimensions: 10 feet length x 1 inch diameter

Product Material: Galvanized steel

Product Features:

• Electrical raceway system
• Corrosion-resistant coating
• Easy to install

FAQ:

Q: What is the brand name of your IMC conduit pipe?

A: Our brand name is RIFI.

Q: What is the model number of your IMC conduit pipe?

A: The model number is IMC.

Q: Where is the IMC conduit pipe manufactured?

A: Our IMC conduit pipe is manufactured in China.

Q: Does the IMC conduit pipe have any certification?

A: Yes, our IMC conduit pipe is UL certified.

Q: What is the minimum order quantity for the IMC conduit pipe?

A: The minimum order quantity is 1000.
